CloudNet@팀의 EKS 스터디 AEWS 2기에 작성된 자료를 토대로 작성합니다.
Auto Mode 실습
- git clone
# Get the code : 배포 코드에 addon 내용이 읍다!
git clone https://github.com/aws-samples/sample-aws-eks-auto-mode.git
cd sample-aws-eks-auto-mode/terraform
# eks.tf : "system" 은 '전용인스턴스'로 추가하지 않는다
...
cluster_compute_config = {
enabled = true
node_pools = ["general-purpose"]
}
...
- Terraform file edit (variables.tf)
- region = ap-northeast-2
- cidr = 10.20.0.0/16
variable "name" {
description = "Name of the VPC and EKS Cluster"
default = "automode-cluster"
type = string
}
variable "region" {
description = "region"
default = "ap-northeast-2"
type = string
}
variable "eks_cluster_version" {
description = "EKS Cluster version"
default = "1.31"
type = string
}
# VPC with 65536 IPs (10.0.0.0/16) for 3 AZs
variable "vpc_cidr" {
description = "VPC CIDR. This should be a valid private (RFC 1918) CIDR range"
default = "10.20.0.0/16"
type = string
}
- init , apply
# Initialize and apply Terraform
terraform init
terraform plan
terraform apply -auto-approve
...
null_resource.create_nodepools_dir: Creating...
null_resource.create_nodepools_dir: Provisioning with 'local-exec'...
null_resource.create_nodepools_dir (local-exec): Executing: ["/bin/sh" "-c" "mkdir -p ./../nodepools"]
...
# Configure kubectl
aws eks --region ap-northeast-2 update-kubeconfig --name automode-clusterAdded new context arn:aws:eks:ap-northeast-2:015609516422:cluster/automode-cluster to /Users/kpkim/.kube/config
# kubectl context 변경
kubectl config get-contexts
CURRENT NAME CLUSTER AUTHINFO NAMESPACE
admin arn:aws:eks:ap-northeast-2:015609516422:cluster/myeks admin
* arn:aws:eks:ap-northeast-2:015609516422:cluster/automode-cluster arn:aws:eks:ap-northeast-2:015609516422:cluster/automode-cluster arn:aws:eks:ap-northeast-2:015609516422:cluster/automode-cluster
arn:aws:eks:ap-northeast-2:015609516422:cluster/fargate-serverless arn:aws:eks:ap-northeast-2:015609516422:cluster/fargate-serverless arn:aws:eks:ap-northeast-2:015609516422:cluster/fargate-serverless
arn:aws:iam::015609516422:user/Ted arn:aws:eks:ap-northeast-2:015609516422:cluster/myeks arn:aws:iam::015609516422:user/Ted
babo kind-myk8s kind-myk8s
kind-myk8s
# 아래 IP의 ENI 찾아보자
kubectl get svc,ep
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 172.20.0.1 <none> 443/TCP 27m
NAME ENDPOINTS AGE
endpoints/kubernetes 10.20.22.204:443,10.20.40.216:443 27m
#
terraform state list
terraform show
terraform state show 'module.eks.aws_eks_cluster.this[0]'
...
compute_config {
enabled = true
node_pools = [
"general-purpose",
]
node_role_arn = "arn:aws:iam::911283464785:role/automode-cluster-eks-auto-20250316042752605600000003"
}
...EKS owned ENI
EKS Auto mode
add-on없음
노드에 접근 못하니까
분석지원 (CRD) 제공
nodediagnostics
#
kubectl get crd
NAME CREATED AT
cninodes.eks.amazonaws.com 2025-03-14T12:27:23Z
cninodes.vpcresources.k8s.aws 2025-03-14T12:23:31Z
ingressclassparams.eks.amazonaws.com 2025-03-14T12:27:23Z
nodeclaims.karpenter.sh 2025-03-14T12:27:23Z
nodeclasses.eks.amazonaws.com 2025-03-14T12:27:23Z
nodediagnostics.eks.amazonaws.com 2025-03-14T12:27:23Z
nodepools.karpenter.sh 2025-03-14T12:27:23Z
policyendpoints.networking.k8s.aws 2025-03-14T12:23:31Z
securitygrouppolicies.vpcresources.k8s.aws 2025-03-14T12:23:31Z
targetgroupbindings.eks.amazonaws.com 2025-03-14T12:27:23Z
kubectl api-resources | grep -i node
nodes no v1 false Node
cninodes cni,cnis eks.amazonaws.com/v1alpha1 false CNINode
nodeclasses eks.amazonaws.com/v1 false NodeClass
nodediagnostics eks.amazonaws.com/v1alpha1 false NodeDiagnostic
nodeclaims karpenter.sh/v1 false NodeClaim
nodepools karpenter.sh/v1 false NodePool
runtimeclasses node.k8s.io/v1 false RuntimeClass
csinodes storage.k8s.io/v1 false CSINode
cninodes cnd vpcresources.k8s.aws/v1alpha1 false CNINode
# 노드에 Access가 불가능하니, 분석 지원(CRD)제공
kubectl explain nodediagnostics
GROUP: eks.amazonaws.com
KIND: NodeDiagnostic
VERSION: v1alpha1
DESCRIPTION:
The name of the NodeDiagnostic resource is meant to match the name of the
node which should perform the diagnostic tasks
#
kubectl get nodeclasses.eks.amazonaws.com
NAME ROLE READY AGE
default automode-cluster-eks-auto-20250314121820950800000003 True 29m
kubectl get nodeclasses.eks.amazonaws.com -o yaml
...
spec:
ephemeralStorage:
iops: 3000
size: 80Gi
throughput: 125
networkPolicy: DefaultAllow
networkPolicyEventLogs: Disabled
role: automode-cluster-eks-auto-20250314121820950800000003
securityGroupSelectorTerms:
- id: sg-05d210218e5817fa1
snatPolicy: Random # ???
subnetSelectorTerms:
- id: subnet-0539269140458ced5
- id: subnet-055dc112cdd434066
- id: subnet-0865f60e4a6d8ad5c
status:
...
instanceProfile: eks-ap-northeast-2-automode-cluster-4905473370491687283
securityGroups:
- id: sg-05d210218e5817fa1
name: eks-cluster-sg-automode-cluster-2065126657
subnets:
- id: subnet-0539269140458ced5
zone: ap-northeast-2a
zoneID: apne2-az1
- id: subnet-055dc112cdd434066
zone: ap-northeast-2b
zoneID: apne2-az2
- id: subnet-0865f60e4a6d8ad5c
zone: ap-northeast-2c
zoneID: apne2-az3
#
kubectl get nodepools
NAME NODECLASS NODES READY AGE
general-purpose default 0 True 33m
kubectl get nodepools -o yaml
...
spec:
disruption:
budgets:
- nodes: 10%
consolidateAfter: 30s
consolidationPolicy: WhenEmptyOrUnderutilized
template:
metadata: {}
spec:
expireAfter: 336h # 14일
nodeClassRef:
group: eks.amazonaws.com
kind: NodeClass
name: default
requirements:
- key: karpenter.sh/capacity-type
operator: In
values:
- on-demand
- key: eks.amazonaws.com/instance-category
operator: In
values:
- c
- m
- r
- key: eks.amazonaws.com/instance-generation
operator: Gt
values:
- "4"
- key: kubernetes.io/arch
operator: In
values:
- amd64
- key: kubernetes.io/os
operator: In
values:
- linux
terminationGracePeriod: 24h0m0s
...
#
kubectl get mutatingwebhookconfiguration
kubectl get validatingwebhookconfiguration
kubeopsview 설치
# 모니터링
eks-node-viewer --node-sort=eks-node-viewer/node-cpu-usage=dsc --extra-labels eks-node-viewer/node-age
watch -d kubectl get node,pod -A
# helm 배포
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system
kubectl get events -w --sort-by '.lastTimestamp' # 출력 이벤트 로그 분석해보자
# 확인
kubectl get nodeclaims
NAME TYPE CAPACITY ZONE NODE READY AGE
general-purpose-528mt c5a.large on-demand ap-northeast-2c i-09cf206aee76f0bee True 54s
# OS, KERNEL, CRI 확인
kubectl get node -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
i-09cf206aee76f0bee Ready <none> 2m14s v1.31.4-eks-0f56d01 10.20.44.40 <none> Bottlerocket (EKS Auto) 2025.3.9 (aws-k8s-1.31) 6.1.129 containerd://1.7.25+bottlerocket
# CNI 노드 확인
kubectl get cninodes.eks.amazonaws.com
NAME AGE
i-09cf206aee76f0bee 3m24s
#[신규 터미널] 포트 포워딩

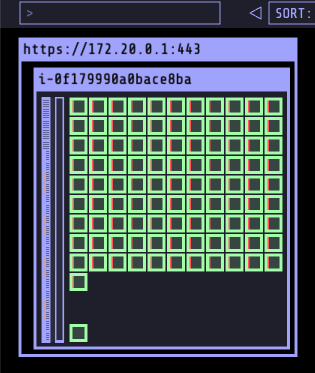

kubectl port-forward deployment/kube-ops-view -n kube-system 8080:8080 &
# 접속 주소 확인 : 각각 1배, 1.5배, 3배 크기
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=1.5"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=3"
open "http://127.0.0.1:8080/#scale=1.5" # macOS
Karpenter도 쓴다구~
[컴퓨팅] karpenter 동작 확인
step 1 . watch 걸어두기
step 2 . pod 배포 (우선 1개-> 100 -> 200 -> 300 스케일 할거임)
step 3 . 스케일
# Step 1: Review existing compute resources (optional)
kubectl get nodepools
general-purpose
# Step 2: Deploy a sample application to the cluster
# eks.amazonaws.com/compute-type: auto selector requires the workload be deployed on an Amazon EKS Auto Mode node.
cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
name: inflate
spec:
replicas: 1
selector:
matchLabels:
app: inflate
template:
metadata:
labels:
app: inflate
spec:
terminationGracePeriodSeconds: 0
nodeSelector:
eks.amazonaws.com/compute-type: auto
securityContext:
runAsUser: 1000
runAsGroup: 3000
fsGroup: 2000
containers:
- name: inflate
image: public.ecr.aws/eks-distro/kubernetes/pause:3.7
resources:
requests:
cpu: 1
securityContext:
allowPrivilegeEscalation: false
EOF
# Step 3: Watch Kubernetes Events + eks-node-viewer + kubeopsview
eks-node-viewer --node-sort=eks-node-viewer/node-cpu-usage=dsc --extra-labels eks-node-viewer/node-age
watch -d kubectl get node,pod -A
#
kubectl scale deployment inflate --replicas 100 && kubectl get events -w --sort-by '.lastTimestamp'
#
kubectl scale deployment inflate --replicas 200 && kubectl get events -w --sort-by '.lastTimestamp'
#
kubectl scale deployment inflate --replicas 50 && kubectl get events -w --sort-by '.lastTimestamp'
# 실습 확인 후 삭제
kubectl delete deployment inflate && kubectl get events -w --sort-by '.lastTimestamp'
[네트워킹] Graviton Workloads (2048 game) 배포 with ingress(ALB)
1. 고객 Nodepool 생성
# custom node pool 생성 : 고객 NodePool : Karpenter 와 키가 다르니 주의!
## 기존(karpenter.k8s.aws/instance-family) → 변경(eks.amazonaws.com/instance-family) - Link
ls ../nodepools
cat ../nodepools/graviton-nodepool.yaml
kubectl apply -f ../nodepools/graviton-nodepool.yaml
---
apiVersion: eks.amazonaws.com/v1
kind: NodeClass
metadata:
name: graviton-nodeclass
spec:
role: automode-cluster-eks-auto-20250314121820950800000003
subnetSelectorTerms:
- tags:
karpenter.sh/discovery: "automode-demo"
securityGroupSelectorTerms:
- tags:
kubernetes.io/cluster/automode-cluster: owned
tags:
karpenter.sh/discovery: "automode-demo"
---
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
name: graviton-nodepool
spec:
template:
spec:
nodeClassRef:
group: eks.amazonaws.com
kind: NodeClass
name: graviton-nodeclass
requirements:
- key: "eks.amazonaws.com/instance-category"
operator: In
values: ["c", "m", "r"]
- key: "eks.amazonaws.com/instance-cpu"
operator: In
values: ["4", "8", "16", "32"]
- key: "kubernetes.io/arch"
operator: In
values: ["arm64"]
taints:
- key: "arm64"
value: "true"
effect: "NoSchedule" # Prevents non-ARM64 pods from scheduling
limits:
cpu: 1000
disruption:
consolidationPolicy: WhenEmpty
consolidateAfter: 30s
#
kubectl get NodeClass
NAME ROLE READY AGE
default automode-cluster-eks-auto-20250314121820950800000003 True 64m
graviton-nodeclass automode-cluster-eks-auto-20250314121820950800000003 True 3m4s
kubectl get NodePool
NAME NODECLASS NODES READY AGE
general-purpose default 0 True 64m
graviton-nodepool graviton-nodeclass 0 True 3m32s
#
ls ../examples/graviton
cat ../examples/graviton/game-2048.yaml
...
resources:
requests:
cpu: "100m"
memory: "128Mi"
limits:
cpu: "200m"
memory: "256Mi"
automountServiceAccountToken: false
tolerations:
- key: "arm64"
value: "true"
effect: "NoSchedule"
nodeSelector:
kubernetes.io/arch: arm64
...
kubectl apply -f ../examples/graviton/game-2048.yaml
# c6g.xlarge : vCPU 4, 8 GiB RAM > 스팟 선택됨!
kubectl get nodeclaims
NAME TYPE CAPACITY ZONE NODE READY AGE
graviton-nodepool-ngp42 c6g.xlarge spot ap-northeast-2b i-0b7ca5072ebf3c969 True 9m48s
kubectl get nodeclaims -o yaml
...
spec:
expireAfter: 336h
...
kubectl get cninodes.eks.amazonaws.com
kubectl get cninodes.eks.amazonaws.com -o yaml
eks-node-viewer --resources cpu,memory
kubectl get node -owide
kubectl describe node
#
kubectl get deploy,pod -n game-2048 -owide관리형 true
EC2 - 1대 생성 확인!, 참고로 접근 안됨. ⇒ Reboot 해보자 ⇒ Terminated 해보자!
재부팅이 안됨
2. ingress 만들기
# ingress 살펴보기
#
cat ../examples/graviton/2048-ingress.yaml
...
apiVersion: eks.amazonaws.com/v1
kind: IngressClassParams
metadata:
namespace: game-2048
name: params
spec:
scheme: internet-facing
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
namespace: game-2048
labels:
app.kubernetes.io/name: LoadBalancerController
name: alb
spec:
controller: eks.amazonaws.com/alb
parameters:
apiGroup: eks.amazonaws.com
kind: IngressClassParams
name: params
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
namespace: game-2048
name: ingress-2048
spec:
ingressClassName: alb
rules:
- http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: service-2048
port:
number: 80
kubectl apply -f ../examples/graviton/2048-ingress.yaml
#
kubectl get ingressclass,ingressclassparams,ingress,svc,ep -n game-2048
NAME CONTROLLER PARAMETERS AGE
ingressclass.networking.k8s.io/alb eks.amazonaws.com/alb IngressClassParams.eks.amazonaws.com/params 25s
NAME GROUP-NAME SCHEME IP-ADDRESS-TYPE AGE
ingressclassparams.eks.amazonaws.com/params internet-facing 25s
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ingress-2048 alb * k8s-game2048-ingress2-db993ba6ac-210498627.ap-northeast-2.elb.amazonaws.com 80 25s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/service-2048 NodePort 172.20.95.201 <none> 80:30218/TCP 25s
NAME ENDPOINTS AGE
endpoints/service-2048 10.20.8.48:80 25s
3. Configure Security Groups : between the ALB and EKS cluster
# Get security group IDs
ALB_SG=$(aws elbv2 describe-load-balancers \
--query 'LoadBalancers[?contains(DNSName, `game2048`)].SecurityGroups[0]' \
--output text)
EKS_SG=$(aws eks describe-cluster \
--name automode-cluster \
--query 'cluster.resourcesVpcConfig.clusterSecurityGroupId' \
--output text)
echo $ALB_SG $EKS_SG # 해당 보안그룹을 관리콘솔에서 정책 설정 먼저 확인해보자
# Allow ALB to communicate with EKS cluster : 실습 환경 삭제 때, 미리 $EKS_SG에 추가된 규칙만 제거해둘것.
aws ec2 authorize-security-group-ingress \
--group-id $EKS_SG \
--source-group $ALB_SG \
--protocol tcp \
--port 80
# 아래 웹 주소로 http 접속!
kubectl get ingress ingress-2048 \
-o jsonpath='{.status.loadBalancer.ingress[0].hostname}' \
-n game-2048
# k8s-game2048-ingress2-db993ba6ac-210498627.ap-northeast-2.elb.amazonaws.com
4. 삭제
# Remove application components
kubectl delete ingress -n game-2048 ingress-2048 # 먼저 $EKS_SG에 추가된 규칙만 제거할것!!!
kubectl delete svc -n game-2048 service-2048
kubectl delete deploy -n game-2048 deployment-2048
# 생성된 노드가 삭제 후에 노드 풀 제거 할 것 : Remove Graviton node pool
kubectl delete -f ../nodepools/graviton-nodepool.yaml
# 삭제
helm uninstall -n kube-system kube-ops-view → 노드(인스턴스)까지 삭제 확인 후 아래 테라폼 삭제 할 것
terraform destroy --auto-approve
rm -rf ~/.kube/config
